The new master in the art of aero
The natural evolution of our high-end aero bike used by professionals.
Filante SLR is an extremely lightweight aerodynamic bike with a significantly improved stiffness-to-weight ratio. We used the same materials and technologies as in the construction of the Wilier 0 SLR.
The result is a high-end aerodynamic frame that complements our pure climbing bike used by the Astana Qazaqstan team.
Filante SLR is an extremely lightweight aerodynamic bike with a significantly improved stiffness-to-weight ratio. We used the same materials and technologies as in the construction of the Wilier 0 SLR.
The result is a high-end aerodynamic frame that complements our pure climbing bike used by the Astana Qazaqstan team.
AERODYNAMIC
Filante SLR was designed to maximize aerodynamic performance in real-world environmental conditions. The design was based on data recorded in a wind tunnel (where the wind is very clean for consistent empirical results) while also taking into account the real world. In this way, we not only evaluate typical wind tunnel data (yaw angles from -20° to +20°), but we also take into account environmental turbulence that affects the bike for many different reasons.
That's why we redesigned the airfoils, starting with the standard NACA/KAMM tail airfoils that no longer have sharp edges at the rear. The softened angles improve performance even when the airflow is disrupted.

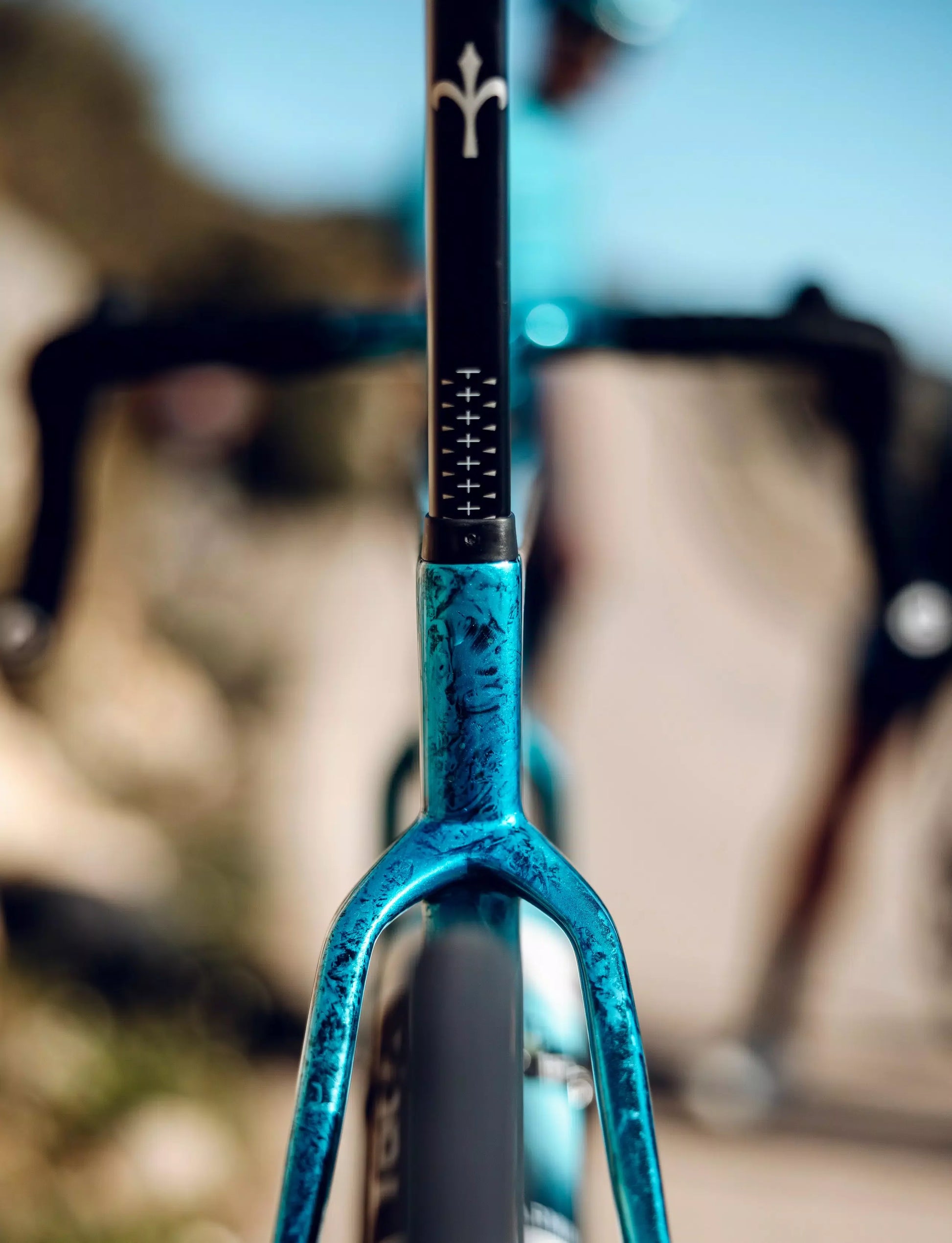

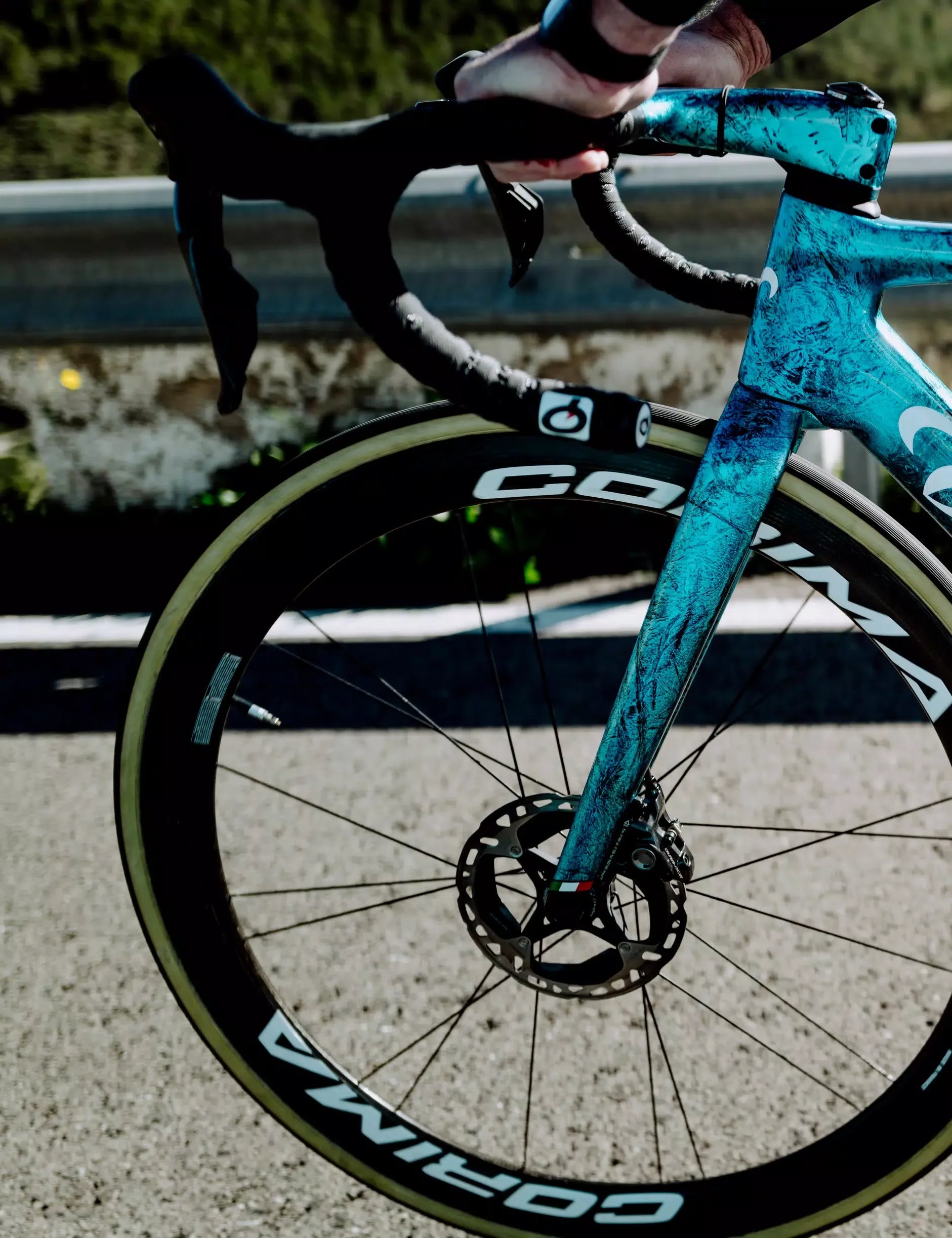

The inside of the front fork has been widened by 7 mm, making it 13.6% wider than the Cento10PRO. In doing so, we have moved the fork legs further away from the wheel, reducing turbulence and improving aerodynamics.
That's why we redesigned the airfoils, starting with the standard NACA/KAMM tail airfoils that no longer have sharp edges at the rear. The softened angles improve performance even when the airflow is disrupted.
The inside of the front fork has been widened by 7 mm, making it 13.6% wider than the Cento10PRO. In doing so, we have moved the fork legs further away from the wheel, reducing turbulence and improving aerodynamics.
240 EQUIPMENT AVAILABLE
Since the fork head tube is no longer beveled, up to 35 mm of spacers can be installed under the handlebars. By combining frame sizes, handlebar sizes, and spacers, we can achieve 240 different connections, with no overlap between combinations. This is in addition to the two seatposts available, with a setback of 15 mm or 0 mm.
Lightweight and responsive
The new aerodynamically optimized profiles have helped us eliminate additional weight in the frame construction. The shape has no sharp edges and therefore requires less material and less resin in the corners. This improves the homogeneity of the interior, reducing the weight of the frame to just 870 grams. The bike assembled to the top-of-the-range specifications weighs 6.8 kg.

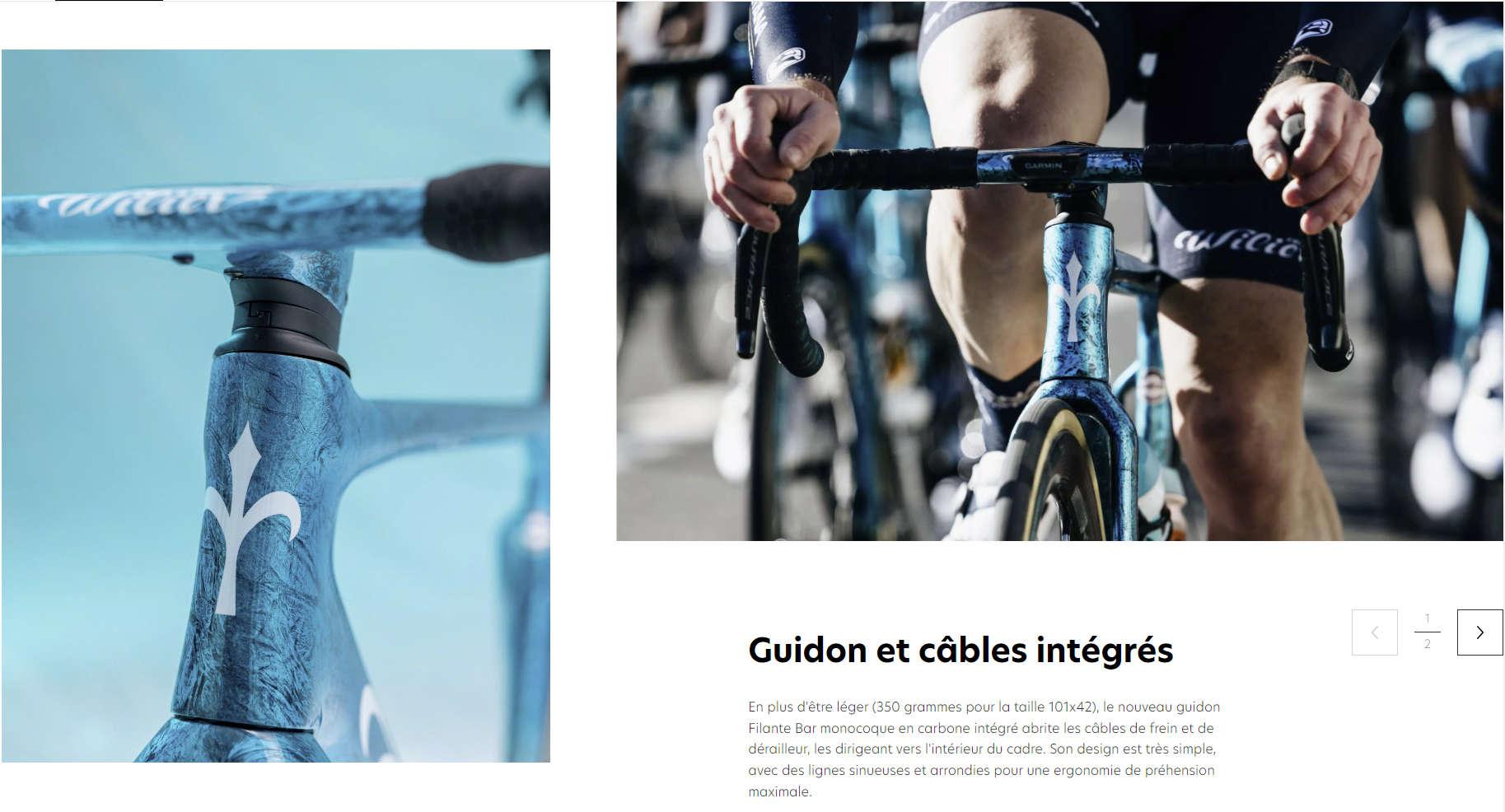

The Filante monocoque handlebar is made from the same carbon we use for the Wilier 0 SLR. Thanks to the different types of carbon we used in combination with the liquid crystal polymer, the unique positioning of the fibers and the construction technology, we have achieved an absolute level of lightness and rigidity.
The lower overall weight, combined with exceptional rigidity, increases the STW by 12.5%. This improvement is clearly felt in the steering precision and the feeling of safety at high speeds.
The Filante monocoque handlebar is made from the same carbon we use for the Wilier 0 SLR. Thanks to the different types of carbon we used in combination with the liquid crystal polymer, the unique positioning of the fibers and the construction technology, we have achieved an absolute level of lightness and rigidity.
The lower overall weight, combined with exceptional rigidity, increases the STW by 12.5%. This improvement is clearly felt in the steering precision and the feeling of safety at high speeds.
|
|
||||

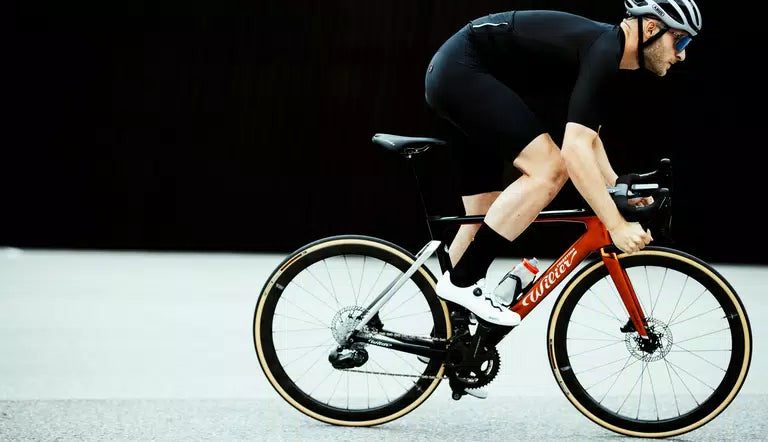

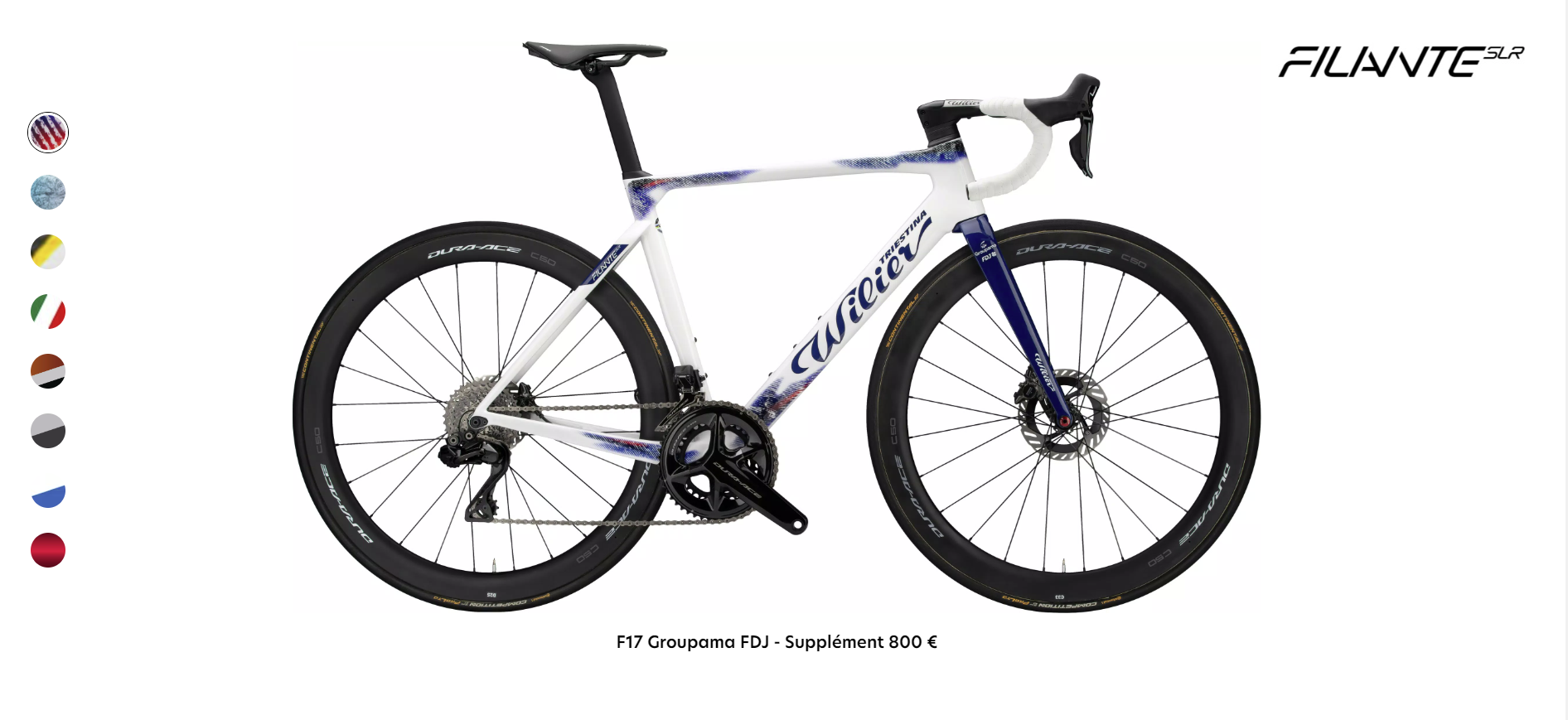

| E403WRL | CAMPAGNOLO SUPER RECORD WRL 12V | WILIER SLR42KC | 12,500.00 € | |
|
Frame : FILANTE SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
Fork : FILANTE SLR - CARBON MONOCOQUE HUS MOD + LIQUID CRYSTAL POLYMER
H-Bar : INTEGRATED CARBON STRING BAR
Weight of the H bar : 350 g +/- 5%
Headset : WILIER CUSTOM BEARINGS SUPERSLIM
Controllers : CAMPAGNOLO SUPER RECORD ERGOPOWER SHIFT WRL
Brakes : CAMPAGNOLO SUPER RECORD WRL 12S
Rotors : CAMPAGNOLO SUPER RECORD DB-160C4 AFS 160 mm / 160 mm
Front derailleur : CAMPAGNOLO SUPER RECORD WRL 12V FD23-SR12WRL
Rear derailleur : CAMPAGNOLO SUPER RECORD WRL 12V RD23-SR12WRL
Crankset : CAMPAGNOLO SUPER RECORD PRO T CARBON FC23-SR12295 45-29T
Bottom bracket : CAMPAGNOLO BB CUP PRO-TECH PRESSFIT 86.5X41 IC21-PRBB86
Cassette : CAMPAGNOLO SUPER RECORD CS23-SR1209 12S 10-29T
Chain : CAMPAGNOLO SUPER RECORD CN23-SR12ML 12V
Tires : VITTORIA CORSA PRO 700x28
Saddle : FLITE BOOST COVERED
Seat post : SLR CARBON WILIER CUSTOM MADE -15 mm / 0 mm
Axis : THRU AXLE MAVIC SPEED RELEASE WITHOUT LEVER | 12X100 FRONT - 12X142 REAR
Frame weight : 870 g +/- 5%
Fork weight : 360 g +/- 5%
|
||||
